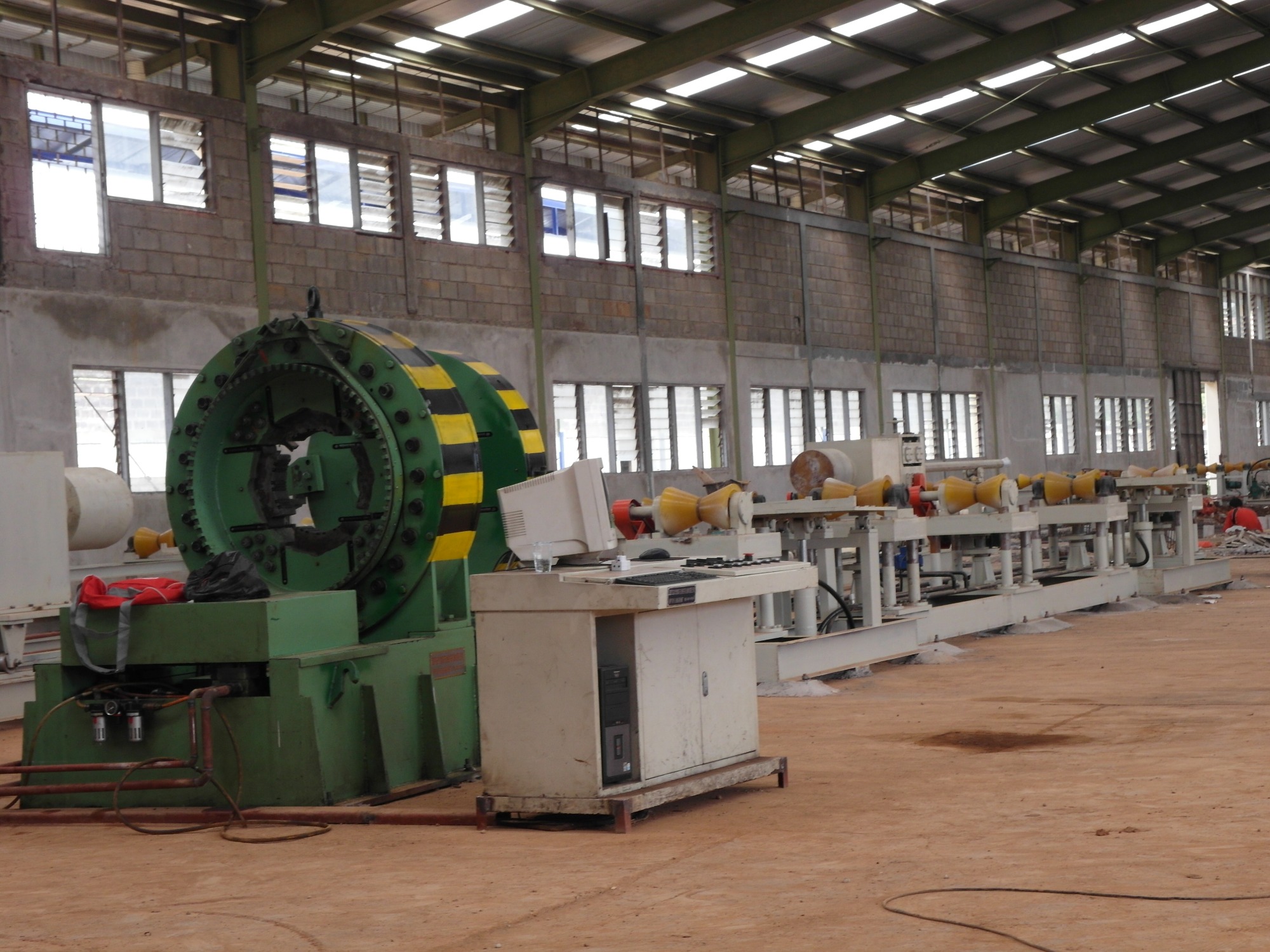

YNJG-570/68 bucking machine produced by Huludao city Boyu Oil Drilling and Extraction machinery limited company is a special equipment used to make up and break out195/8″、10 3/4″、13 5/8″, 16”, 18
YNJG-570/68 bucking machine produced by Huludao city Boyu Oil Drilling and Extraction machinery limited company is a special equipment used to make up and break out195/8″、10 3/4″、13 5/8″, 16”, 18 5/8”, 20”coupling and pipes.
YNJG-570/68 bucking machine has six parts: power tong, backup tong, hydraulic system，pneumatic system，control system and machine body.
Specifications of the bucking machine YNJG570/68
1. Bore diameter：￠570
2. Application ： 13"—20"pipe
3. Speed change ：stepless
4. Max. torque：68KN.m
5. High gear rotary speed：1-21r/min
6. Low gear rotary speed：1-6r/min
7. Working speed：60-100s/piece
8. Motor power：30KW
9. System rated pressure：20MPa
10. Control system ： PLC+ industry computer
11. Free torque setting.
Specifications of the bucking machine YNJG570/68
1. Bore diameter：￠570
2. Application ： 13"—20"pipe
3. Speed change ：stepless
4. Max. torque：68KN.m
5. High gear rotary speed：1-21r/min
6. Low gear rotary speed：1-6r/min
7. Working speed：60-100s/piece
8. Motor power：30KW
9. System rated pressure：20MPa
10. Control system ： PLC+ industry computer
11. Free torque setting.
